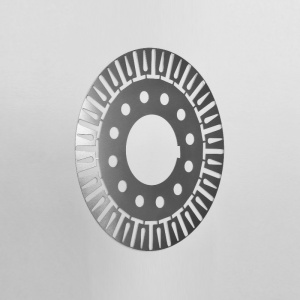

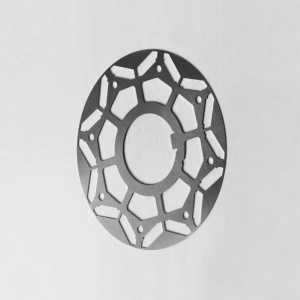

Motor Lamination Efficiency Motor lamination efficiency refers to the effectiveness of the laminated core design in minimizing energy losses and maximizing performance in electric motors. Laminated cores are made by stacking thin sheets of electrical steel, insulated from each other to reduce eddy current losses, which are a major source of inefficiency in motor operation. The efficiency of motor laminations depends on several factors, including material selection, core design, manufacturing precision, and insulation quality. 1. Material Selection The choice of electrical steel significantly impacts lamination efficiency. High-grade silicon steel is commonly used due to its low hysteresis loss and high magnetic permeability. The thickness of the laminations also plays a critical role—thinner laminations (typically 0.1mm to 0.5mm) reduce eddy currents more effectively but may increase manufacturing complexity. 2. Core Design Optimization The geometry of the laminated core affects magnetic flux distribution and losses. Key design considerations include: - Slot and Pole Configuration: Proper alignment minimizes flux leakage and improves torque generation. - Stator and Rotor Lamination Shape: Optimized profiles reduce magnetic reluctance and enhance energy conversion. - Stacking Factor: A high stacking factor (ratio of solid steel to total volume) ensures better magnetic performance. 3. Manufacturing Precision Precision cutting and stacking are essential to maintain uniformity and minimize air gaps, which can increase core losses. Advanced techniques like laser cutting or progressive die stamping ensure tight tolerances and smooth edges, reducing magnetic flux distortion. 4. Insulation and Coating Insulation between laminations prevents eddy currents. Common methods include oxide coatings, varnish, or organic films. Poor insulation can lead to interlaminar short circuits, increasing heat generation and reducing efficiency. 5. Loss Reduction Strategies - Annealing: Heat treatment improves grain orientation, reducing hysteresis losses. - Grain-Oriented Steel: Aligns magnetic domains to enhance flux directionality. - Segmented Laminations: Dividing the core into smaller sections can further minimize eddy currents. Conclusion Efficient motor laminations are crucial for high-performance motors, impacting energy consumption, heat generation, and operational lifespan. By optimizing material selection, core design, and manufacturing processes, motor efficiency can be significantly improved, contributing to energy savings and sustainability in industrial and consumer applications. Continuous advancements in materials and fabrication techniques will further enhance lamination efficiency in future motor designs.
